DW-BJAiASL

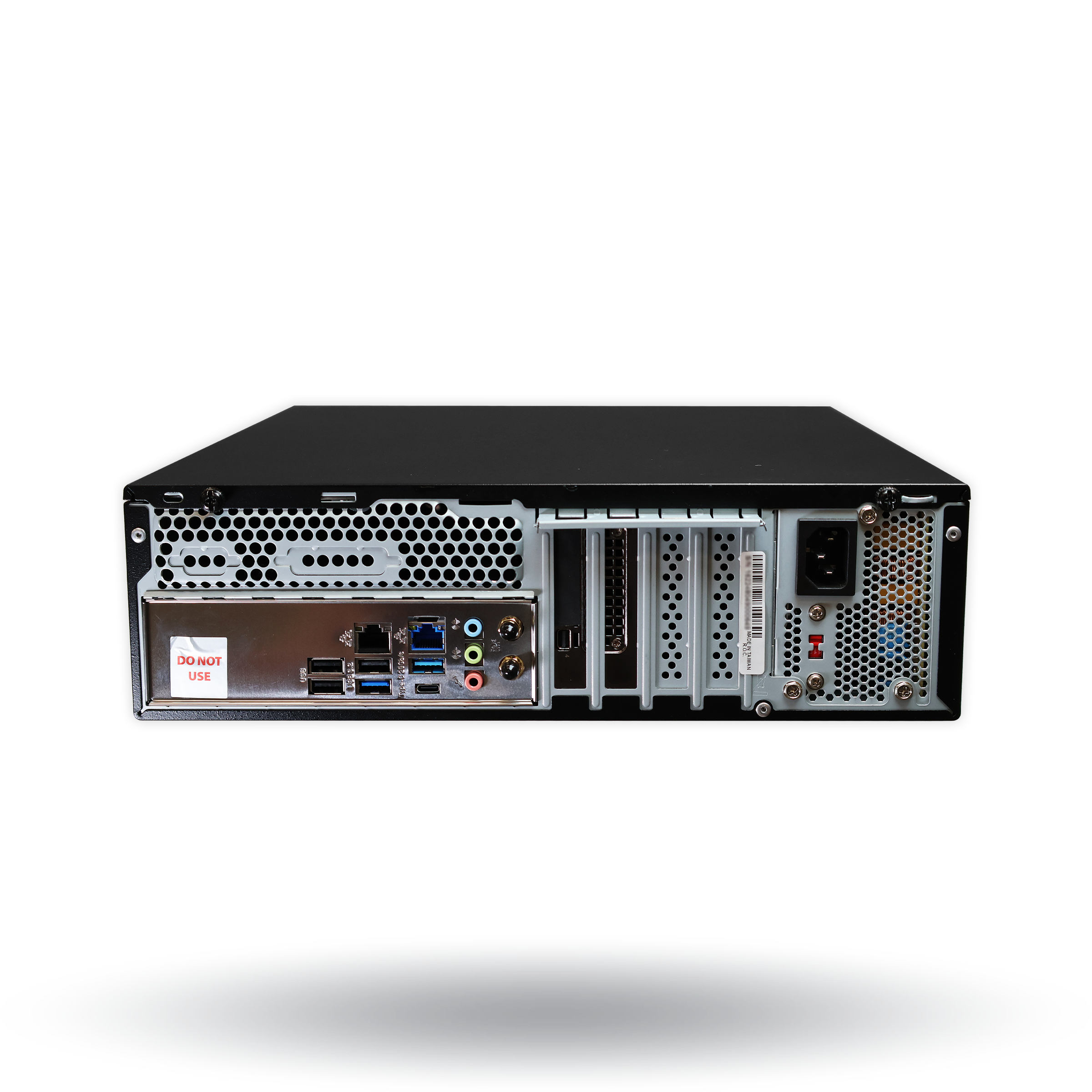

Blackjack Ai slim desktop video analytics appliance
Features
  • Deep learning analytics on an appliance, connected to any DW Spectrum IPVMS system for any connected stream
  • Hosting Intelligent Video Analytics AI software deep learning and color filter
  • Providing Server-side analytics to non-analytic cameras on any DW Spectrum IPVMS system
  • Analytics by Deep Learning engine
  • Up to 64 secondary streams
  • 12th Gen Intel® Core™ i7 processor
  • 1x mini Display Port for system configuration
  • 1 x 1Gb Ethernet, 1x 2.5Gb Ethernet ports
  • Windows 10 IoT LTSC on separate SSD
  • One (1) 4-channel DW Ai Server licenses included (DW-DWAiSLSC004)
  • No annual maintenance fees
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • NDAA/TAA compliant
  • 5 Years limited warranty

Server-Side Analytics for Non-Analytic Cameras

Bring classified object detection (bicycles, cars, counters, forklifts, motorcycles, persons, trucks, unclassified and vans) to your existing non-analytic cameras.

Ai Analytics and deep learning

DW Ai solutions include all the Intelligent Video Analytics and advanced Video Content Analysis detection capabilities of the Ai engine. In addition, Ai servers empower users with deep learning objects and people tracking and color filters.

Deep Learning

DW’s Ai intelligent algorithms offer deep learning with better object detection and identification of environmental elements. The result is a substantial reduction in false alarms for control room operators and security personnel. Allowing only valid events to filter through increases efficiency and productivity, and reduces unnecessary costs.

Easy setup (no manual analytics calibration)

DW’s Ai allows operators to choose what to detect and where; with a user-friendly and straightforward UI, users can set up multiple scenarios specific to their monitoring needs without complex calibration.

Reduce false alarms

DW’s Ai accurately categorizes moving objects and people, distinguishing them from environmental items such as spiders, shaking shadows and moving lights. The result is a reduction in false alarm rates, saving storage and enabling more efficient monitoring.

Designed and commissioned in the U.S.A

All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.

Specifications

Video
Display Modes Unlimited, Customizable, Sequence
Local Video Outputs 1x mini Display Port, For initial system configuration, 1 display output at a time
Memory 32GB
Video Card NVIDIA RTX A2000 12GB
Video Compression H.264, H.265
Video Operating System Windows® 10 IoT Enterprise LTSC
OS on SSD 2x 512GB M.2 (RAID1)
Storage
Maximum Storage No storage
Performance
Max # of analytic streams (secondary) Up to 64
Performance features Analytics appliance for lower deployment cost, Deep learning classifiers and logical rules engine, Server-side analytics for non-analytic cameras
System Operation Graphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included)
Network
Ethernet Ports 1x 1G Ethernet (RJ45), 1x 2.5Gb Ethernet
Electrical
Power Consumption 300W, A UPS is recommended
General
Accessories Keyboard, Mouse
Ai Configuration Tool supported OS Cross-platform - Windows® and Linux Ubuntu®
Included DW Ai Server Licenses 4 channel (DW-DWAiSLSC004)
Operating Temperature and Humidity 20 ~ 90% RH, 41 ~ 104 °F (5~40 °C)
Preloaded Analytic software DW Ai Server
Recorder Dimensions (H X W X D) Standing: 13.1” x 3.88” x 15.8” (334 x 98.5 x 402 mm), Desktop: 3.88” x 13.1” x 15.8” (98.5 x 334 x 402 mm)
USB interface Yes
Warranty 5 Year Limited Warranty
Certification CE  FCC  NDAA Compliance  TAA Compliance
Form Factor Slim Desktop

Purchasing Options

DW Spectrum IPVMS Licensing Options
Ai Server License

Part Number

Description

DW-AiSLSC001
Single DW Ai Server Analytic License
DW-AiSLSC004
Four (4) DW Ai Server Analytic Licenses
DW-AiSLSC010
Ten (10) DW Ai Server Analytic Licenses
DW-AiSLSC020
Twenty (20) DW Ai Server Analytic Licenses

Documents

Title Type
DW-BJAiASL A&E specifications
docx Download
DW-BJAiASL quick setup guide
pdf Download
DW-BJAiASL datasheet - French
pdf Download
DW-BJAiASL datasheet - Spanish
pdf Download
DW-BJAiASL datasheet
pdf Download
Blackjack Ai Brochure
pdf Download
Blackjack Ai user manual
pdf Download

Software

Title Type Release Notes Version Update Date Compatibility Size
Blackjack Ai Configuration Tool v2.10.2 exe 2.10.2 08/19/2024 48.67 MB Download
Blackjack Ai Server Plugin for Linux v2.5.52 so v2.5.52 08/19/2024 1.47 MB Download
Blackjack Ai Server Plugin for Windows v2.5.52 dll v2.5.52 08/19/2024 1.90 MB Download
Blackjack Ai Server v2.10r3 exe v2.10r3 08/19/2024 963.00 MB Download
